Glass-to-Metal Seals (GTMS)

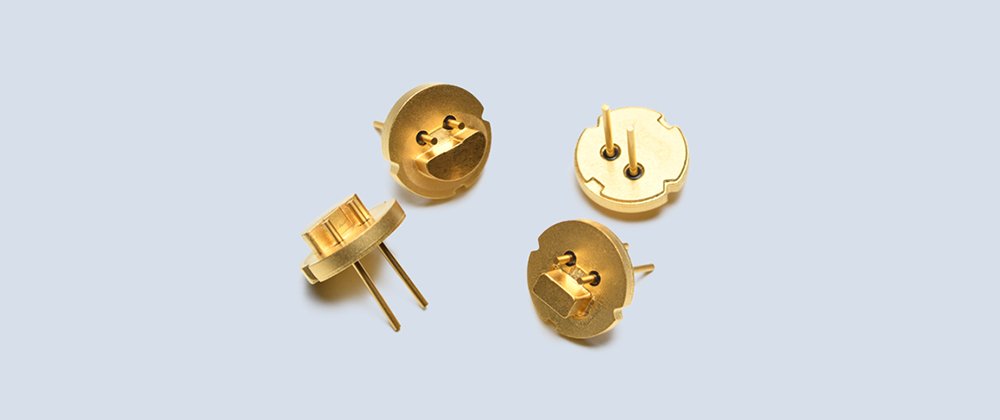

Glass-to-Metal Seals (GTMS) for LD Light Source

*LD (Laser Diode)

Introduction

SHINKO develops and supplies optical source packages with high heat dissipation material composition and structure for projectors, automotive headlights and other applications.

Features

  • Hermeticity: 1x10-9 Pa.m3/sec and lower
  • High electrical insulation: 1 x 1011 Ω or higher
  • To react flexibly to diversifying customers' needs, we are able to carry out all the integrated production processes (from product design and mold design to stamping and plating), based on a thorough quality management regime
  • We propose material composition and simulate the heat dissipation process to provide optimal heat dissipation properties
  • Glass-to-metal seals design and functional combination of the seal with copper heatsink are suggested to satisfy your requested performance
  • We suggest the optimal material composition, sealing method, and structure depending on design and application

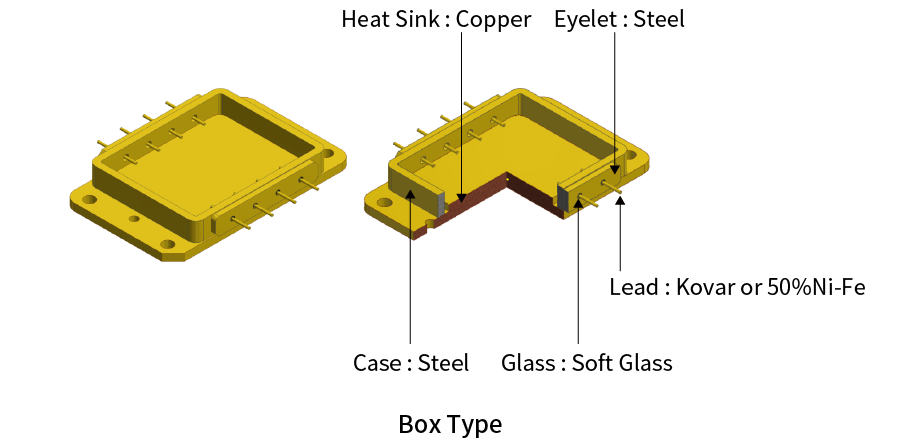

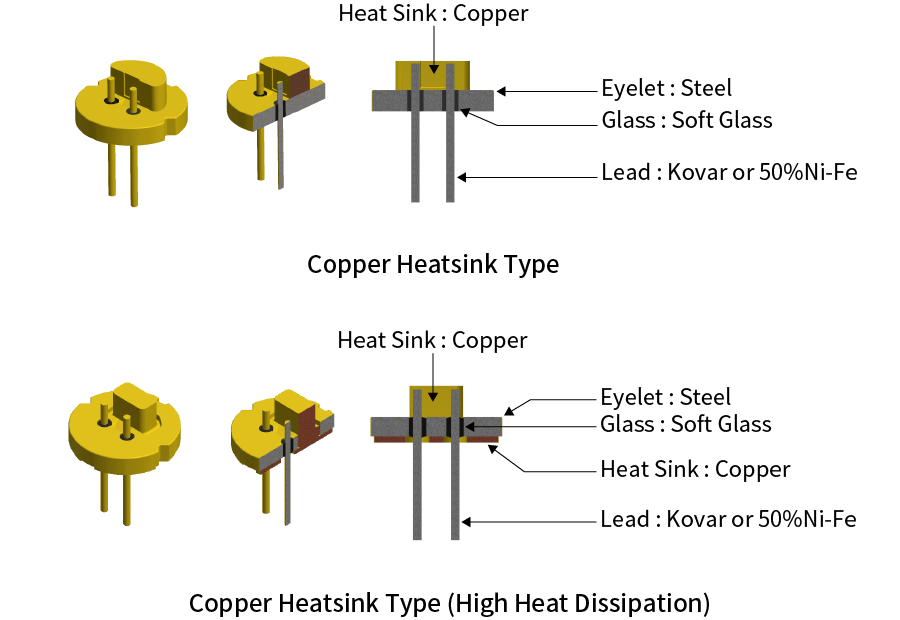

Structure



Applications

  • Laser light sources for projectors
  • Laser light sources for automotive headlights
  • Laser light sources for laser processing machines, etc.

Technical Document (Download)


Click on download the PDF file and view details.
