Precision Die Parts

Introduction

SHINKO has enough experience of precision stamping die parts with high quality and machining capabilities accumulated by manufacturing for semiconductor packages over many years.

Features

• Available supply of parts with high shape accuracy, surface roughness, and other conditions, according to customers’ requirements
  In particular, we have an excellent manufacturing experience with carbide material cutting edge parts and other parts

Processing Example

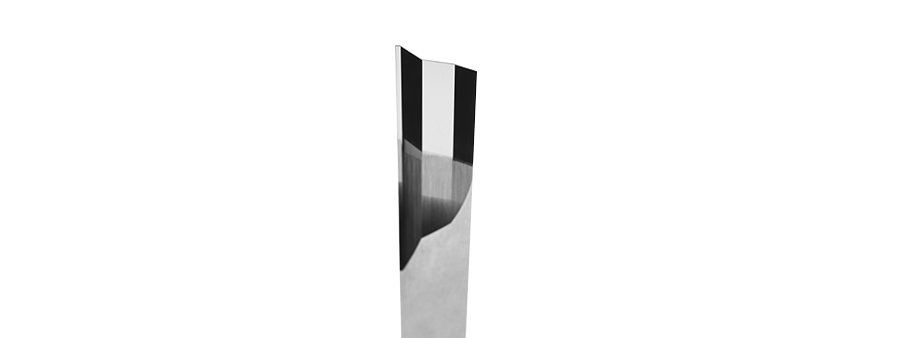

Profile Processing

Material: Carbide
Cutting edge width: 0.04 mm minimum
Surface roughness: Ry 0.30 μm

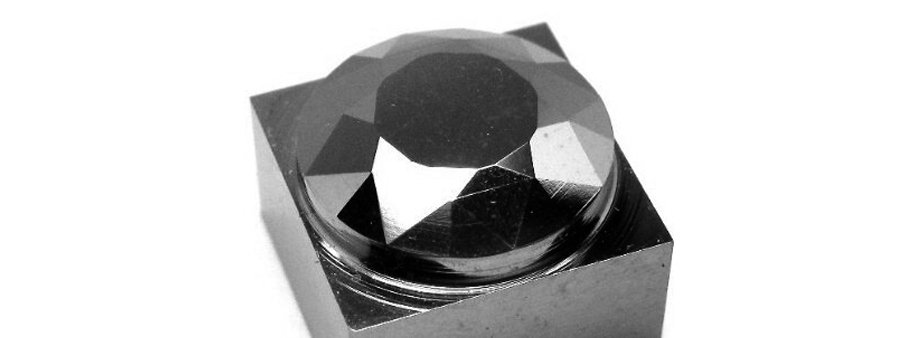

Material: Carbide

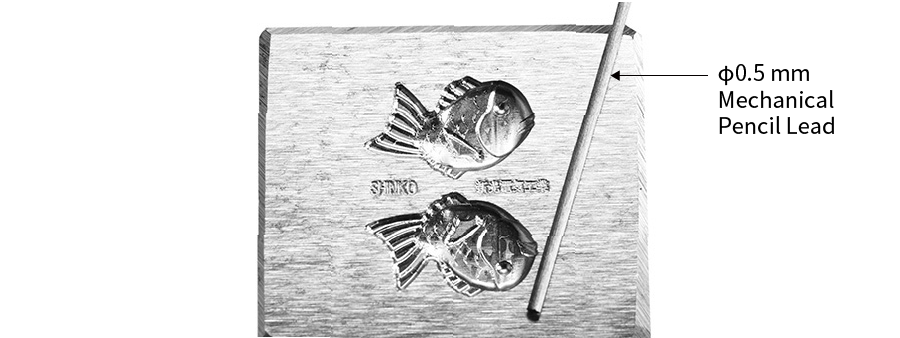

Machining Center Processing

Material: SKD11

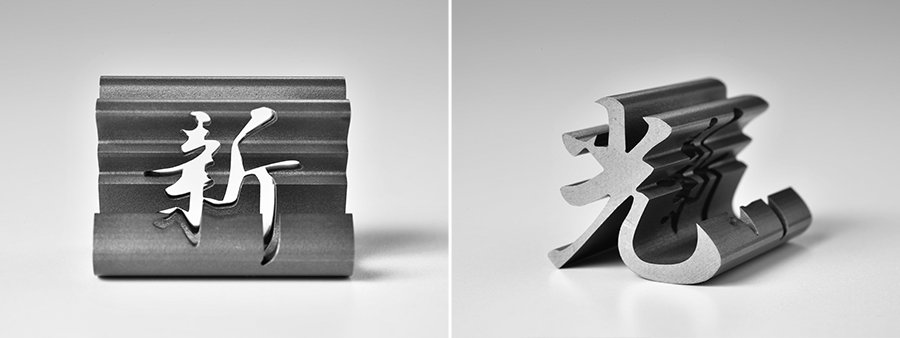

Wire Electric Discharge Machining

Material: Copper

Application

• Precision die tool for stamping and metal processing
